Our Products

Mounted on side of nozzle of the tanks, float position changes with the level which in turns with the help of magnetic coupling changes the switch contacts.Used for : Automatic pump controlHigh & low level signalsSafety interlock circuitsAvailable Material of wetted parts SS304/316/PP/Teflon linned, Weather proof/Flame proff enclosures.
SIDE MOUNTED MAGNETIC LEVEL SWITCHES
VIEW DETAILS

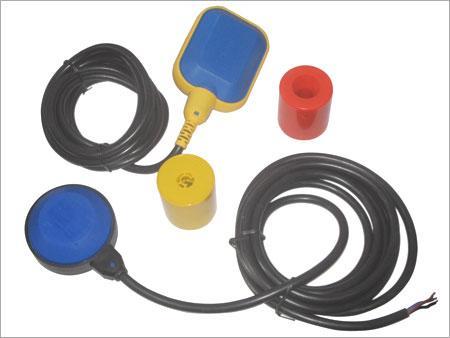

Cable Float Switch is a control device for automatic On/Off pumps, motor and magnetic valves. It is also an alarm device at certain pre-determined surface levels. It is suitable for use in non-flammable liquids at 250 volts. In dangerous environments (e.g. wells and pumping stations) we recommend 24 V voltage. In potentially explosive atmospheres (e.g. oil tanks) the Switch can be used in conjunction with (Ex) I-isolator switch units. Due to its large float casing the float Switch has a buoyancy which guarantees smooth, trouble-free operation under all conditions. The switch has double chamber and a final remoulding finish to make it absolutely hermetic.INSTALLATIONCable Float Switch is simply placed in the liquid so that the float follows the movement of the surface. The switching height differential is adjusted by moving the weight along the cable. The differential is minimum, when weight is nearest to the float. If the viscosity of the liquid is high, we recommend an extra weight on the cable.
CABLE FLOAT SWITCH
VIEW DETAILS
Level switches work on permanent magnet reed switch basis. The floats which contain permanent magnets move freely between their stops rising or falling with liquid level movement. Hermetically sealed within the tube are reed switches, completely isolated from the medium. The magnet’s field actuates the reed switch as the float moves while the stoppers restrict overrun and prevent the reed switch returning to its original position. Stopper positions should not be changed.SPECIFICATIONSProcess Connection 1/8″BSP(M)Mounting Hole 10mmGasket PTFE Teflon Flat RingMaterial of Construction SS 316Type of Switch SPSTSwitch Rating 60VA/ 100VATotal Stem Length 40mm below HexFloat 28mm dia x 28mm longMaximum Switching Voltage 300 VAC /DCMaximum Working Temperature 125 °CMaximum Working Pressure 10 kg/cm2Wire length 1 metre long 19/36 SWG PTFE insulated
MINIATURE LEVEL SWITCH
VIEW DETAILS
SIGHT FLOW INDICATOR
SIGHT FLOW INDICATOR
VIEW DETAILS
We are into manufacturing and exporting of Industrial Grade Manometer, which is specially designed to measure pressure. Industrial Grade Manometers offered by us, are manufactured from Aluminum casing from three sides with transparent acrylic front. Moreover, this Industrial Grade Manometer has uniform bore, thick -walled Borosilicate glass and is powder coated.FEATURESScale is Aluminum Anodized with PVC/PP/SS304 wetted partsThe end connections may be ¼” BSP, ½” BSP OR Nozzle typeMounting available in wall/Panel/Stand type.All manometers are supplied with zero adjusting knob and drain plugInstrument accuracy is better than +/-0.5% of F.S.D.
MANOMETER
VIEW DETAILS

Filter using tags

SIDE MOUNTED MAGNETIC LEVEL GAUGE IN ANKLESHWARSIDE MOUNTED MAGNETIC LEVEL GAUGE MANUFACTURERSSIDE MOUNTED MAGNETIC LEVEL GAUGE SUPPLIER IN ANKLSIDE MOUNTED MAGNETIC LEVEL GAUGE SUPPLIERSIDE MOUNTED MAGNETIC LEVEL GAUGEMETAL TUBE ROTAMETER SUPPLIER IN ANKLESHWARMETAL TUBE ROTAMETER MANUFACTURERS IN ANKLESHWARMETAL TUBE ROTAMETER IN ANKLESHWARMETAL TUBE ROTAMETERLOW FLOW ROTAMETER MANUFACTURERS IN ANKLESHWARLOW FLOW ROTAMETER IN ANKLESHWARLOW FLOW ROTAMETER SUPPLIER IN ANKLESHWARLOW FLOW ROTAMETER SUPPLIERLOW FLOW ROTAMETERROTAMETER MANUFACTURERS IN ANKLESHWARROTAMETER IN ANKLESHWARROTAMETERBREATHER VALVE MANUFACTURERS IN ANKLESHWARBREATHER VALVE MANUFACTURERSBREATHER VALVE SUPPLIER IN ANKLESHWARBREATHER VALVESIDE MOUNTED MAGNETIC LEVEL SWITCHES IN ANKLESHWARSIDE MOUNTED MAGNETIC LEVEL SWITCHES MANUFACTURERSSIDE MOUNTED MAGNETIC LEVEL SWITCHES SUPPLIERSIDE MOUNTED MAGNETIC LEVEL SWITCHESFLAME ARRESTERS MANUFACTURERS IN ANKLESHWARFLAME ARRESTERS IN ANKLESHWARFLAME ARRESTERS SUPPLIER IN ANKLESHWARFLAME ARRESTERS SUPPLIERFLAME ARRESTERSBY PASS ROTAMETER IN ANKLESHWARBY PASS ROTAMETER MANUFACTURERS IN ANKLESHWARBY PASS ROTAMETER MANUFACTURERSBY PASS ROTAMETER SUPPLIERBY PASS ROTAMETERGLASS TUBE ROTAMETER IN ANKLESHWARGLASS TUBE ROTAMETER MANUFACTURERS IN ANKLESHWARGLASS TUBE ROTAMETER SUPPLIERGLASS TUBE ROTAMETERCABLE FLOAT SWITCH MANUFACTURERS IN ANKLESHWARCABLE FLOAT SWITCH IN ANKLESHWARCABLE FLOAT SWITCH SUPPLIER IN ANKLESHWARCABLE FLOAT SWITCH MANUFACTURERSCABLE FLOAT SWITCHSIGHT FLOW INDICATOR MANUFACTURER IN ANKLESHWARSIGHT FLOW INDICATOR IN ANKLESHWARSIGHT FLOW INDICATOR MANUFACTURERSSIGHT FLOW INDICATOR SUPPLIERSIGHT FLOW INDICATORFLOAT & BOARD TYPE MAGNETIC LEVEL GAUGE MANUFACTURLEVEL GAUGE MANUFACTURERS IN ANKLESHWARLEVEL GAUGE IN ANKLESHWARLEVEL GAUGE SUPPLIER IN ANKLESHWARFLOAT AND BOARD LEVEL GAUGE MANUFACTURERS IN ANKFLOAT AND BOARD LEVEL GAUGE IN ANKLESHWARFLOAT AND BOARD LEVEL GAUGE SUPPLIER IN ANKLESHWARFLOAT AND BOARD LEVEL GAUGESIDE MOUNTED TUBULAR LEVEL GAUGE IN ANKLESHWARSIDE MOUNTED TUBULAR LEVEL GAUGE MANUFACTURERSSIDE MOUNTED TUBULAR LEVEL GAUGE SUPPLIERSIDE MOUNTED TUBULAR LEVEL GAUGEMANOMETER MANUFACTURERS IN ANKLESHWARMANOMETER IN ANKLESHWARMANOMETER SUPPLIER IN ANKLESHWARMANOMETER MANUFACTURERSMINIATURE LEVEL SWITCH MANUFACTURERS IN ANKLESHWARMINIATURE LEVEL SWITCH IN ANKLESHWARMINIATURE LEVEL SWITCH SUPPLIER IN ANKLESHWARMINIATURE LEVEL SWITCH MANUFACTURERSREFLEX LEVEL GAUGE MANUFACTURERS IN ANKLESHWARREFLEX LEVEL GAUGE MANUFACTURERSREFLEX LEVEL GAUGE IN ANKLESHWARREFLEX LEVEL GAUGETOP MOUNTED MAGNETIC LEVEL SWITCHES IN ANKLESHWARTOP MOUNTED MAGNETIC LEVEL SWITCHES MANUFACTURERSTOP MOUNTED MAGNETIC LEVEL SWITCHES SUPPLIERTOP MOUNTED MAGNETIC LEVEL SWITCHES
Mounted on side of nozzle of the tanks, float position changes with the level which in turns with the help of magnetic coupling changes the switch contacts.Used for : Automatic pump controlHigh & low level signalsSafety interlock circuitsAvailable Material of wetted parts SS304/316/PP/Teflon linned, Weather proof/Flame proff enclosures.
View Details
SIDE MOUNTED MAGNETIC LE
Cable Float Switch is a control device for automatic On/Off pumps, motor and magnetic valves. It is also an alarm device at certain pre-determined surface levels. It is suitable for use in non-flammable liquids at 250 volts. In dangerous environments (e.g. wells and pumping stations) we recommend 24 V voltage. In potentially explosive atmospheres (e.g. oil tanks) the Switch can be used in conjunction with (Ex) I-isolator switch units. Due to its large float casing the float Switch has a buoyancy which guarantees smooth, trouble-free operation under all conditions. The switch has double chamber and a final remoulding finish to make it absolutely hermetic.INSTALLATIONCable Float Switch is simply placed in the liquid so that the float follows the movement of the surface. The switching height differential is adjusted by moving the weight along the cable. The differential is minimum, when weight is nearest to the float. If the viscosity of the liquid is high, we recommend an extra weight on the cable.
View Details
CABLE FLOAT SWITCH
Level switches work on permanent magnet reed switch basis. The floats which contain permanent magnets move freely between their stops rising or falling with liquid level movement. Hermetically sealed within the tube are reed switches, completely isolated from the medium. The magnet’s field actuates the reed switch as the float moves while the stoppers restrict overrun and prevent the reed switch returning to its original position. Stopper positions should not be changed.SPECIFICATIONSProcess Connection 1/8″BSP(M)Mounting Hole 10mmGasket PTFE Teflon Flat RingMaterial of Construction SS 316Type of Switch SPSTSwitch Rating 60VA/ 100VATotal Stem Length 40mm below HexFloat 28mm dia x 28mm longMaximum Switching Voltage 300 VAC /DCMaximum Working Temperature 125 °CMaximum Working Pressure 10 kg/cm2Wire length 1 metre long 19/36 SWG PTFE insulated
View Details
MINIATURE LEVEL SWITCH
SIGHT FLOW INDICATOR
View Details
SIGHT FLOW INDICATOR
We are into manufacturing and exporting of Industrial Grade Manometer, which is specially designed to measure pressure. Industrial Grade Manometers offered by us, are manufactured from Aluminum casing from three sides with transparent acrylic front. Moreover, this Industrial Grade Manometer has uniform bore, thick -walled Borosilicate glass and is powder coated.FEATURESScale is Aluminum Anodized with PVC/PP/SS304 wetted partsThe end connections may be ¼” BSP, ½” BSP OR Nozzle typeMounting available in wall/Panel/Stand type.All manometers are supplied with zero adjusting knob and drain plugInstrument accuracy is better than +/-0.5% of F.S.D.
View Details
MANOMETER
